Your Professional Johnson Evinrude Outboard Ignition Switch Supplier
Hangzhou Starwave Technology Co., Ltd. is a professional enterprise focusing on the full-range supply of outboard motor parts. Its core competitiveness comes from our own physical factory-a precision manufacturing base with decades of experience in manufacturing core components of internal combustion engines.We are highly compatible with nearly 100 models of global mainstream outboard motor brands such as Mercury, Yamaha, Suzuki and Honda, and our services cover diverse customer groups including professional repair shops, equipment distributors and overseas traders.
-

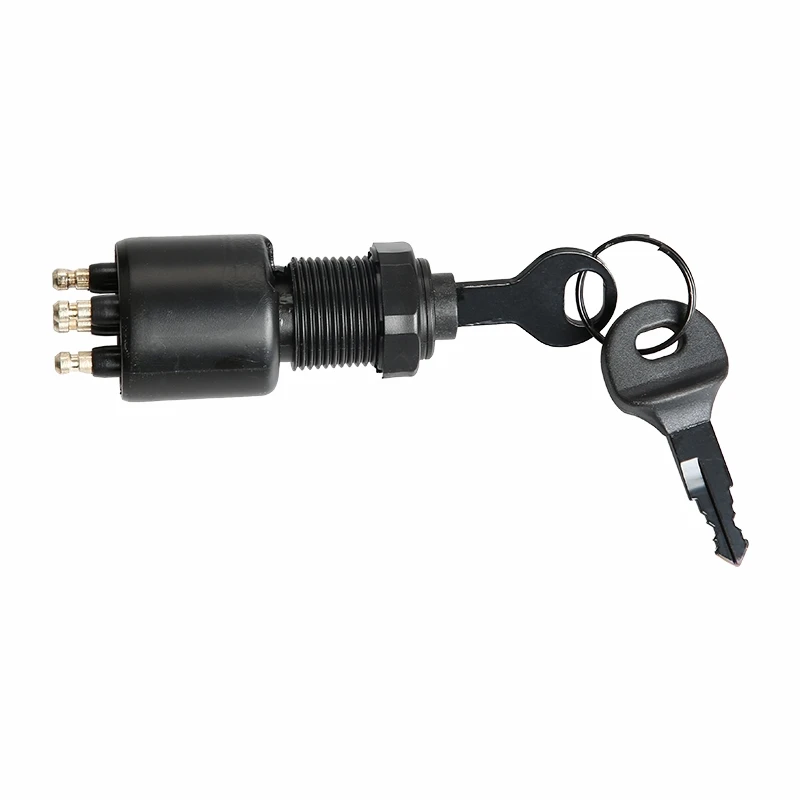

![175974 5005801 Ignition Switch Key Assembly with Safety Lanyard for OMC Johnson Evinrude 40-200HP Outboard Motor]()
175974 5005801 Ignition Switch Key Assembly with Safety L...Horsepower: 40-200HP
Why Choose Us
R&D Team
The R&D center of Hangzhou Starwave Technology Co., Ltd. is built around a highly skilled technical team, featuring a structure characterized by senior leadership combined with deep professional specialization, ensuring strong technical expertise, efficient innovation, and the ability to develop high-quality products that meet international market standards.
Our Service
We provide dedicated one-on-one technical support, with our professional technical team available 24/7 and a guaranteed response time of within 2 hours, ensuring efficient communication, rapid problem resolution, and reliable support throughout the entire cooperation process.
Our Certificate
As a national high-tech enterprise, we hold IATF 16949 and ISO 9001 system certifications, along with multiple patents, demonstrating our strong commitment to quality management, technological innovation, and industry-leading standards.
Production Market
Our products are exported to a wide range of international markets, including South American countries such as Brazil and Argentina, Southeast Asian countries, African nations, Europe, and the United States, reflecting our strong global reach and the trust of customers worldwide.
Positions: Typically 3-position: OFF (magneto grounded), RUN (magneto open), START (solenoid activated).
Push-to-Choke: Pressing the key inward (or turning past 'Run') activates the choke circuit, simplifying starting.
Corrosion Resistance: Designed for marine use with sealed contacts, non-conductive housings, and drain holes to prevent oxidation and shorts.
Durable Construction: Made from strong plastics and metals (like Delrin) for longevity in harsh environments.
Electrical Specs: Standard 12V DC, rated for 15-20A (ignition) and 30A (solenoid).
Wiring: Specific wiring for magneto systems (different from automotive), often with 6-pin connectors (Black/Yellow for Mag, Purple for 12V, etc.).
Safety: Often includes connections for a safety lanyard/kill switch.
Product Paramenters
|
OEM |
5005801 175974 |
|
Material |
Metal + Plastic |
|
Product Details: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Features： |
1.Made of high-quality plastic and metal materials, which is wear-resistant and durable, not easy to break and has long service life. The manufacture of the ignition key switch meets the strict quality requirements |
|
2.Pull down the safety switch lanyard in an emergency, the engine power on the ship will be disconnected. This outboard switch lanyard is very convenient to use and can handle emergency situations |
|
|
3.This boat ignition switch push to choke is easy to use, direct replacement, just a simple plug and play with no wire splicing. The size is 70mm * 30mm / 2.8 * 1.2in. The lanyard length (after extended) is about 125cm / 49.2in |
|
|
Replaces: |
Product Type: Ignition Key Switch / Specifications: / Replaces: / Oem Interchange Part Number : 5005801 175974 |
|
Applications: |
This Item Fits Various Applications By Part Number. Please Check Your Part Number To Ensure Fitment. / Make & Model(S): |
|
Compatible with OMC Johnson Evinrude 40-200HP Outboard Motors |
|
|
Source: |
Aftermarket |
|
Original: |
Lishui, China |
|
Payment term: |
TT, LC |
|
Delivery date: |
Negotiable |
|
Packing: |
Export standard |
|
Market: |
Asia/South America/Europe |
- The installation of the ignition switch should take into account the requirements of dust, water and shock resistance.
- The ignition switch is typically fixed to the steering column. The installation must take into account ease of use, operation for the driver and complete verification of the ergonomics. When the key is inserted into the ignition switch, it is convenient for the driver to start the engine.
- At the same time, the ease of dismantling and installation must be satisfied in terms of the fixed structure. The convenience of after-sales maintenance must be taken into account.
Key Functions & Components of Johnson Evinrude Outboard Ignition Switch
Battery Power (B)
Directs 12V from the battery to accessories and the ignition system when the key is "On".
01
Start (S)
Engages the starter solenoid when the key is turned to "Start," sending power to crank the engine.
02
Magneto (M)/CDI (Ignition)
Connects the ignition switch to the engine's magneto/CDI unit (powerpack) to create the spark.
03
Kill Switch/Ground (M)
In the "Off" position, the switch grounds the magneto circuit, stopping the spark and shutting down the engine (unlike automotive switches that provide power).
04
Choke
Some switches have a "Push-to-Choke" feature, sending power to an electric choke to enrich fuel/air mix for cold starts.
05
How it Johnson Evinrude Outboard Ignition Switch works
OFF
The magneto (M) terminal is grounded; the engine is off.
ON (Run)
Key turns, B gets power from battery, M disconnects from ground, allowing the magneto/CDI to generate spark for running.
START
Key turns further, S engages the starter, B also powers the ignition for continued running once started, and then you release the key back to "ON".
Push-to-Choke (if equipped)
Pushing the key in while ON sends power to enrich fuel for starting.
Shipping
We are one of the most credible johnson evinrude outboard ignition switch manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale johnson evinrude outboard ignition switch for sale here from our factory. For quotation, contact us now.
OMC key switch, Ignition Switch with Safety Lanyard, 5005801 175974
